Access Based Enumeration: How to Enable ABE for Windows Server

Access Based Enumerationย (ABE) allows you to hide files and folders from usersย who do not have the permissions needed to access them. Limiting visibility makes it easier for employees to navigate the file server, while also preventing speculation about the contents of folders with evocative names. Even if they can’t get inside, just seeing a folder labelled “2023_Restructuring” could get people spreading rumors.

Access-based Enumeration was designed to stop the rumor mill from churning. It ensures that nosy employees do not even see objects they have no permissions for. In this article, we are going to explain how to set up ABE correctly and how it works on different Windows drives.

What Is Access Based Enumeration?

Every company has different types of data that different employees need access to based on their business role. Because this data is usually kept on a central file server shared by many people, admins have to set NTFS permissions and share permissions in such a way that each user can only access files and folders they need for their job. Restricting IT privileges to only what is strictly necessary, a.k.a. least privilege access, helps prevent employee data theft and lowers the risk of cyberattacks. It is an essential part of cybersecurity.

However, if you properly restrict permissions in Windows namespaces, you run into a problem: By default, users can still see folders they are not allowed to open, which can expose sensitive directories, makes it confusing to navigate the file server and leads to a lot of support calls by frustrated employees. Access based enumeration allows you to stop these issues by limiting what users can see to what they can actually interact with.

Why use Access Based Enumeration?

Up until Windows Server 2008, admins had to pay extra attention to how and especially where they set up new folder structures. Users with access to a particular folder were automatically able to see all of its subfolders, even if they did not have the necessary permissions to open those folders. This scenario was quite common and led to all kinds of problems:

  • The folder name itself might give away confidential information (for example, “Facility_NJ_jobcuts”).

  • Users might assume there is a mistake and bombard admins with emails to request access, like “Why can’t I open this folder?!”.

  • Showing users all these dead ends makes file server navigation unnecessarily confusing.

Trying to avoid these issues often led to complicated folder structures because admins had to rely on moving folders to deeper levels or new branches of the directory tree to hide them from unauthorized users. Which meant that for employees who did need that data, it was buried under layer after layer of different folders. Access based enumeration put an end to this challenge.

Young woman at the office with unintentional access to top secret file shares because someone forgot to check the properties and enable access-based enumeration.
โ€œHey, youโ€™ll never guess what I just saw!” With Access Based Enumeration, you can stop rumors before they start. (c) ะœะธั…ะฐะธะป ะ ะตัˆะตั‚ะฝะธะบะพะฒ

How to Enable Access Based Enumeration

Access based enumeration was introduced with Windows Server 2003 R2. Since it is not active by default, ABE must be explicitly enabled if you want to use the feature. ABE is also available for other data storage systems such as NetApp, where the feature must be activated through the ONTAP Command Line.

Depending on which version of Windows Server you use, there are different ways to enable ABE both through admin consoles and command lines.

  1. Server Manager Console

    In Windows Server 2012 or newer versions, you can enable ABE under theย File and Storage Servicesย role by right-clicking on a share and going toย Properties -> Settings -> Enable access based enumeration.

  2. PowerShell

    If theย SMBShare moduleย is installed, you can enable access based enumeration through theย Cmdlet Set-SmbShareย and theย parameter -FolderEnumerationMode, which can be set to AccessBased or Unrestricted. To enable ABE for an entire share, use a command likeย Set-SmbShare -Name โ€œExampleโ€ -FolderEnumerationMode AccessBased.

  3. Group Policy Object

    Access based enumeration can also be enabled through a GPO. You can find this setting underย Computer Configuration -> Preferences -> Windows Settings -> Network Shares.

ABE in DFS

Since Windows 2008 R2, access-based enumeration also works in Distributed File System Namespaces (DFS). As with regular shares, ABE must be actively enabled for DFS namespaces since the setting is not in effect by default. More information on how to enable ABE for a DFS namespace. Again, there are multiple ways to enable ABE in a DFS namespace:

  • DFS Management: ABE can be enabled through the server manager under Tools -> DFS Management. Right-click on the namespace you want to edit and select Properties -> Advanced -> Enable access based enumeration.

  • Command Line: Open the command prompt for a server that has the DFS role or DFS tools installed and enter the command “dfsutil property abe enable \\ NamespaceRoot”.

  • PowerShell: Instead of the command line, you can also enable ABE on DFS namespaces through PowerShell using the Set-DfsnRoot cmdlet to edit the -EnableAccessBasedEnumeration parameter. For example by entering Set-DfsnRoot -Path “NamespaceRoot” -EnableAccessBasedEnumeration $True.

Office building with people using access-based enumeration to control the visibility of file shares.
ABE helps users navigate the file server and protects sensitive data. Adobe Stock, (c) Hero Images

Does ABE Affect Performance?

With ABE enabled, your file server needs to show different information to each user depending on their permissions. This requires checking which folders a user has access to the moment they open a directory, and then filtering out objects they cannot read, open or edit. Checking each object’s access control list to determine if it can be displayed adds extra steps to file server navigation and can affect performance and response times.

At least, ABE did have an effect on performance in the past. Back in 2003, when ABE was first introduced, this process required considerable amounts of CPU power, which in turn led to a loss in performance and thus to an increase in costs. You can learn more about the technical background of this phenomenon in this Microsoft blogpost.

Nowadays, however, performance loss when you enable ABE is no longer an issue. Even for very large environments, Microsoft currently cites that the additional CPU power required is at around 2-3 percent. For shares containing a max. of 15,000 files, no differences in performance could be observed at all.

Best Practices: ABE and NTFS Permissions

Access based enumeration allows you to hide directories a user cannot access. To allow users to navigate to subfolders they have explicit permissions for, you need to make sure they receive the List Folder Contents permission for all directories between root and their target folder. Otherwise, they either cannot see or cannot open directories on the way to their destination.

Example: If a user has the permission โ€œModifyโ€ for a folder located on level 2, this does not automatically give them the right to browse level 1 and reach this folder. They must be given the List Folder Contents permission for level 1. You can automate this process by setting up nested list groups.

Here is the recommended approach: The permission group that grants a user access to a folder on level 2 is itself a member of a list group which holds the List Folder Contents permission for the superordinate folder. This way, any users that are assigned read or write privileges for subfolders automatically receive the necessary list rights to navigate to the folder in question.

For permissions on deeper levels, the procedure is the same, except multiple nested list groups are required: the permission group for level 3 is a member of the list group for level 2, which is itself a member of the list group for level 1. Because the number of required groups grows with each additional level and Windows puts a hard limit on group membership for SIDs, you should avoid setting explicit permissions on deeper levels (max. 2 or 3 levels deep).

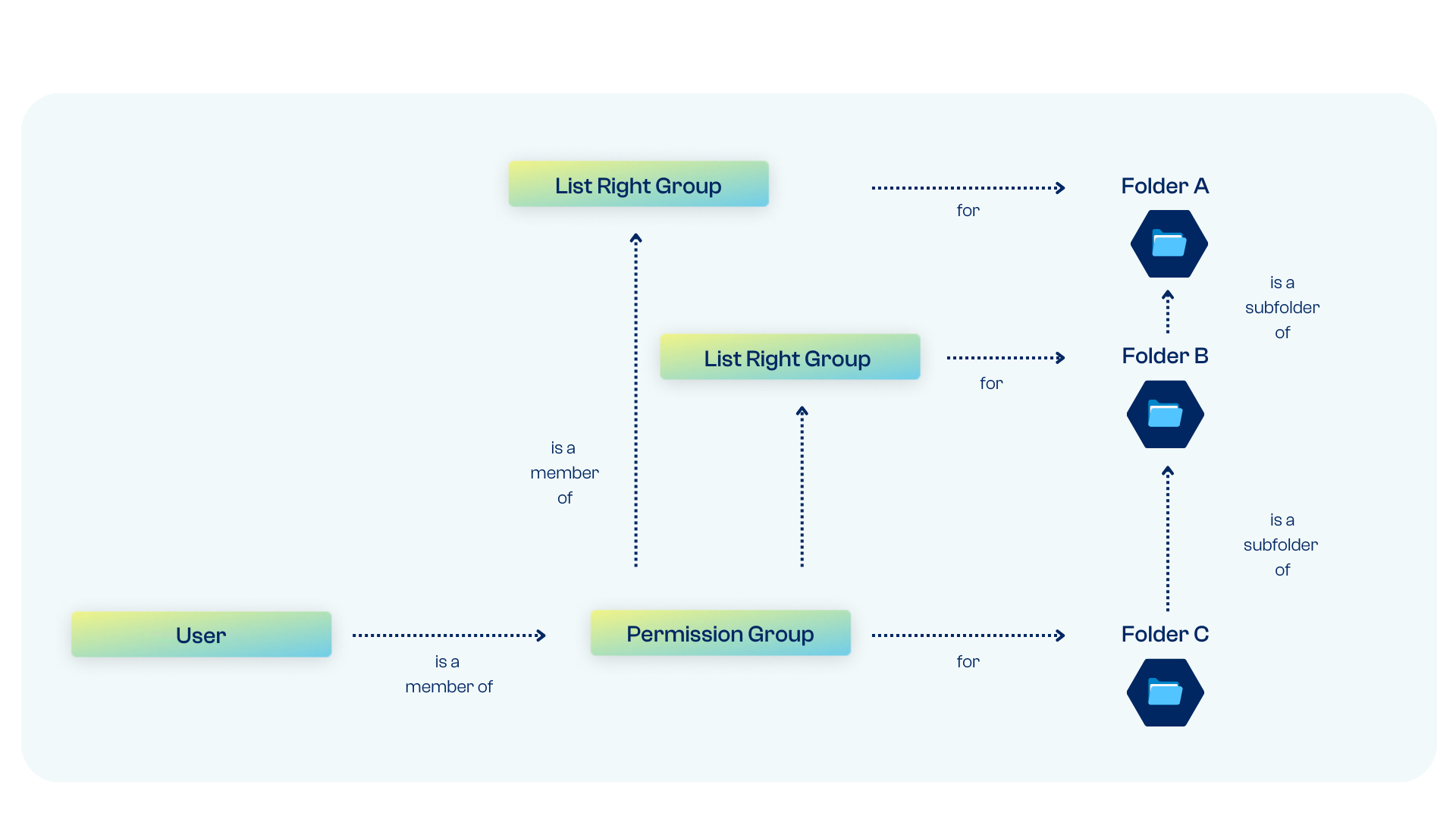

Diagram picturing best practices for enabled access-based enumeration
Best practices for enabling access-based enumeration in Microsoft Windows, (c) tenfold Software

This approach is an extension of the AGDLP principle, Microsoft’s recommended approach for implementing role-based access control in Windows environments, which relies on nested groups.

Deactivate Inheritance

Access Control Lists use the concept of inheritance, which means that access rights are automatically passed on from parent folders or files to subordinate (child) folders/files. To ensure ABE works correctly, it is very important to restrict inheritance when assigning these permissions.

If you enable inheritance for the โ€œlist contentsโ€ permission, users will be able to browse all folders on the file server because the permission needed to browse level 1 would propagate to all subordinate files and folders. To learn how to deactivate the inheritance function in Windows 10, click here.

ABE: Not Entirely Automated

In the best-case scenario, Access Based Enumeration works as follows:

  • With a combination of appropriateย list groupsย and ABE enabled, you can ensure that users are only able to browse folders on the file server which they have the necessary permissions for.

  • Nesting list groupsย with permission groups makes assigning explicit permissions on deeper levels easy because the user simply has to beย added to the relevant permission groupย to receive access.

  • Theย user automatically receives the list rightsย needed to browse any superordinate folders simply byย being a memberย of the necessary parent list groups.

As you can see: Access Based Enumeration works โ€“ but only if admins configure all settings and properties in accordance with best practices. If a share or its subfolders are not configured correctly or if you accidentally apply the unaltered default settings, users will be able to see the entire directory list, even with ABE active.
